Enduro

Transition Bikes

Relay

2024Complete buildUpdated Aug 2026

Build $9,575

22 parts · 8 sections

Frame

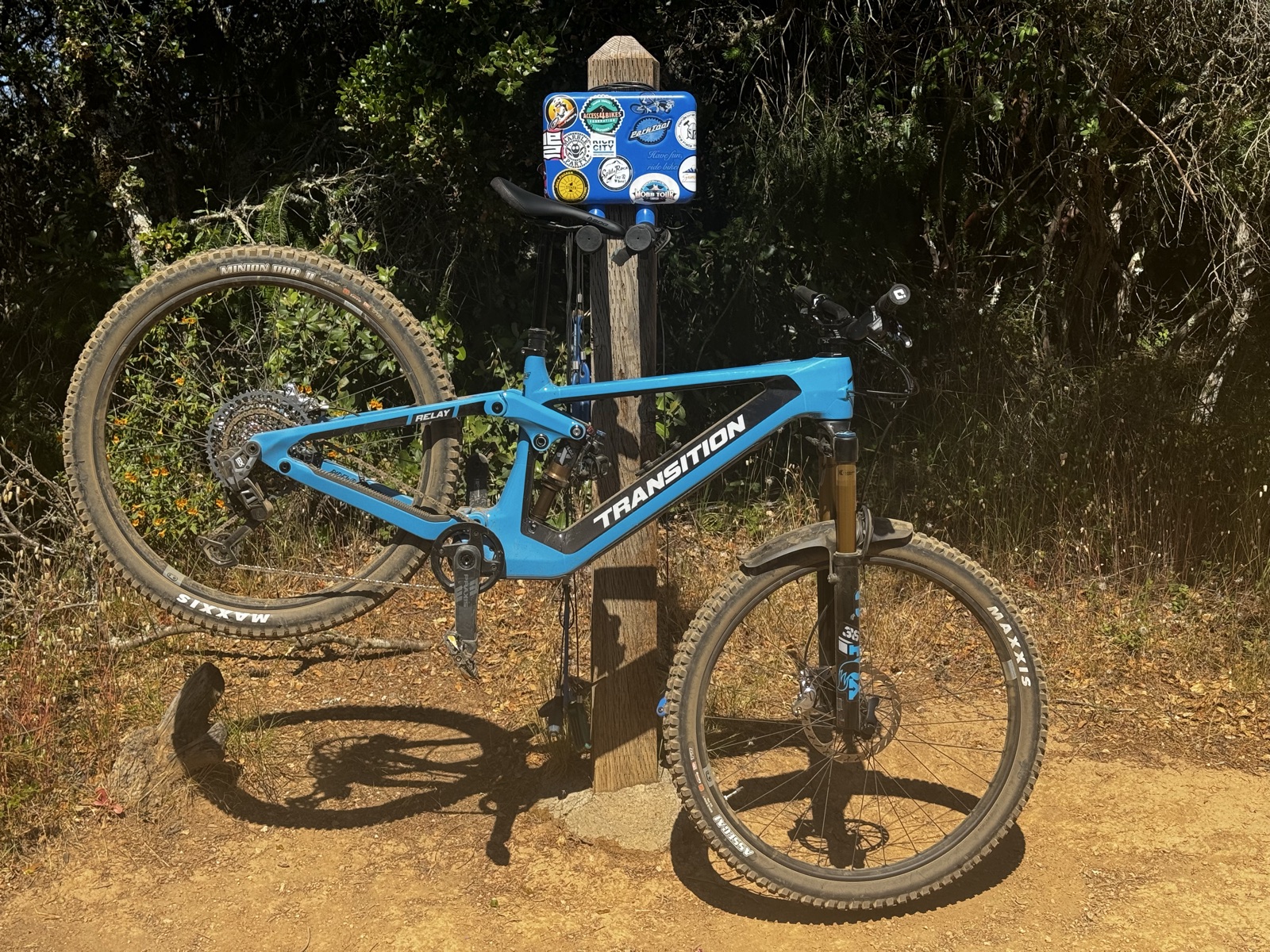

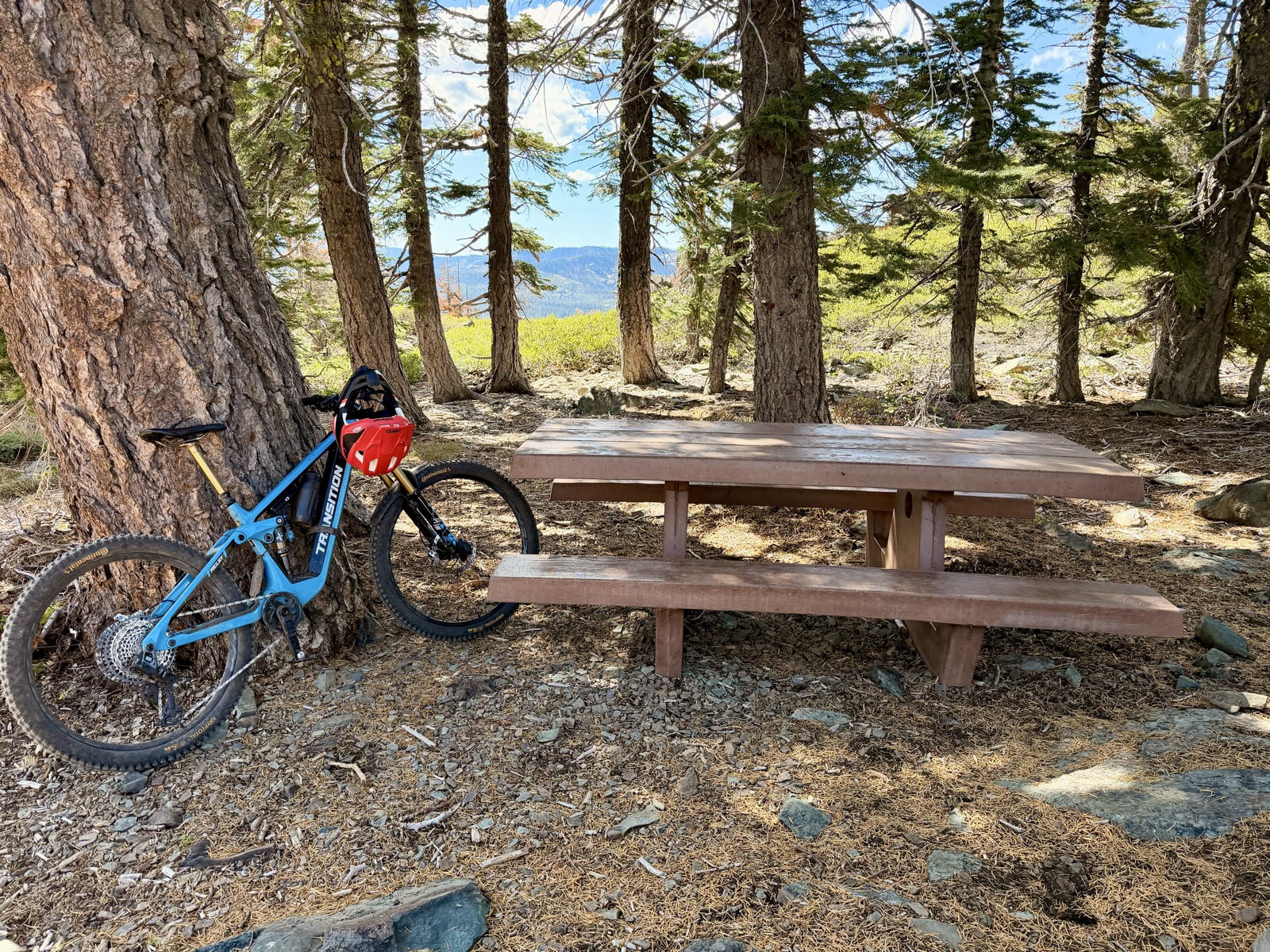

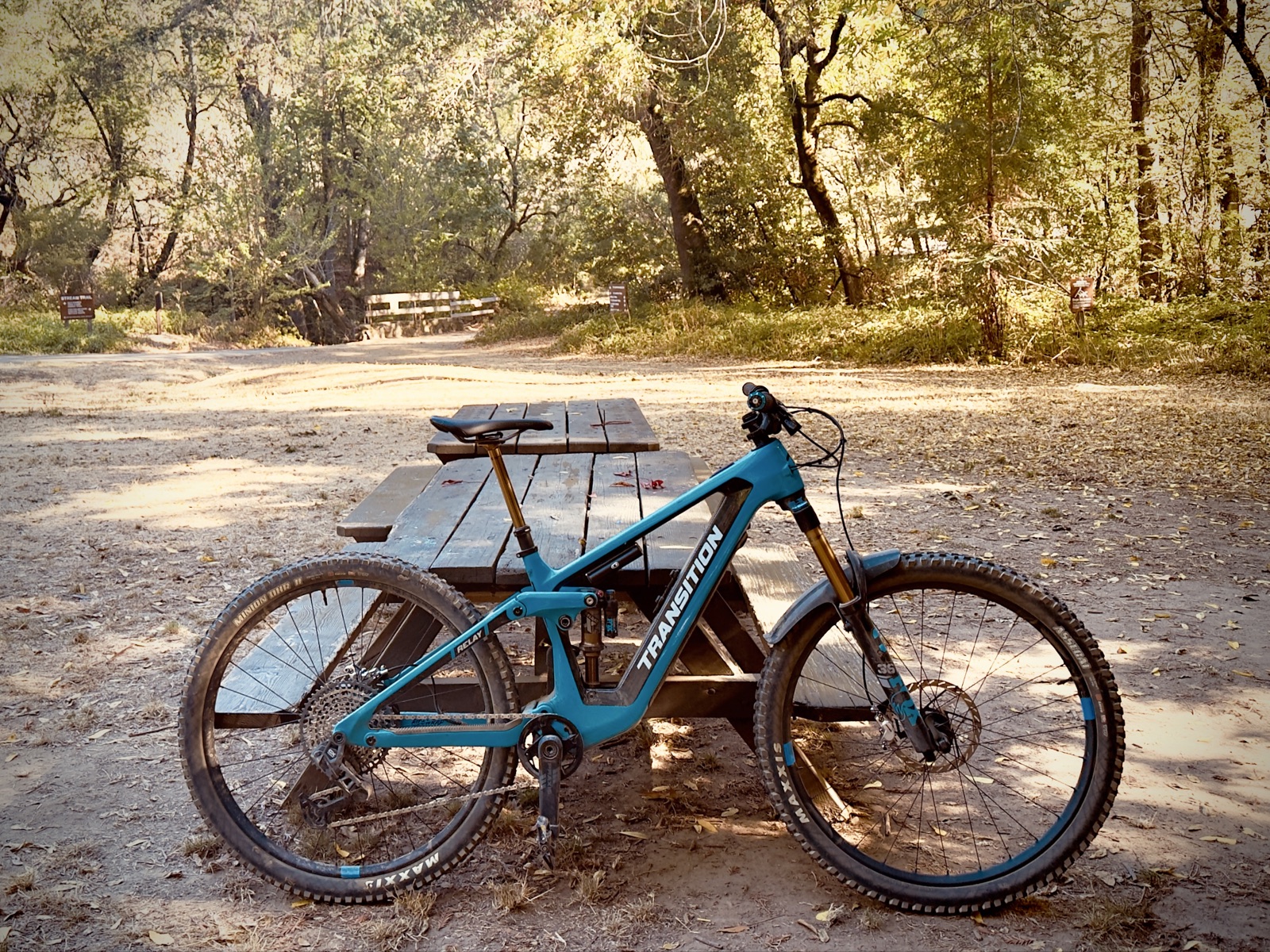

Transition Relay

Frame · Frame type Full Suspension · Category E-MTB · Material Aluminum / Carbon · Rear travel 160 mm · Size L / M / S / XL / XS / XXL · Wheel size (current config) 27.5) / 29 / Mullet (29

Suspension

Fox 36

Fork · Wheel size 29 · Travel 150 / 160 mm · Front axle / spacing 15x110 (Boost) · Offset 44mm mm · Steerer diameter 1.5" tapered · Brake mount Post Mount · Stanchion diameter 36 mm · Spring type Air · External adjustments GRIP2 · Weight 1942 g

Fox Float X Factory

Rear shock · Eye-to-eye length 205 / 210 mm · Stroke ~52.5 mm · Mount / hardware Trunnion · Spring type Air · External adjustments 2-Pos Adj. · Tune CL55/RL60 tune · Weight ~459 g

Drivetrain

SRAM Pod Controller Ultimate

Shifter · Actuation type Electronic · Compatibility 12-speed · Mount Left / Right

SRAM GX Eagle Transmission

Derailleur · Actuation type Electronic · Mount type long cage · Cassette compatibility XD · Clutch yes

SRAM GX Eagle Transmission

Cassette · Speeds 12 · Range 10-52 · Freehub body SRAM XD · Weight ~385 g

SRAM GX Eagle Transmission

Chain · Speeds 12 · Compatibility T-Type

e*thirteen Helix Race

Crankset · Chainring interface Direct Mount · Spindle / BB interface Aluminum

SRAM Eagle AXS

Chainring · Speeds 12 · Material Carbon

Powertrain

Fazua Ride 60

Motor · Max torque 60 Nm · Peak power 450 W · Sustained power 250 W · Support modes Breeze / River / Rocket · Weight ~1960 g

Fazua Energy 430

Battery

Wheels & Tires

$400

Race Face Aeffect R

Wheelset · Wheel size 27.5 / 29 · Internal rim width 30 mm · Hub spacing 12x148 (Boost) / SuperBoost 157 · Driver body Shimano HG / Shimano Micro Spline / SRAM XD · Rotor interface 6-Bolt · Material Aluminum (6069) · Spoke count 28 · Tubeless ready Yes · Weight 2000 g

$400

Maxxis Assegai

Tire · Wheel size 27.5 / 29 · Width 2.50 / 2.60 · Compound 3C MaxxGrip / Dual / MaxxTerra · Casing DoubleDown / Downhill / EXO / EXO+ · TPI 60 · Tubeless ready Yes · E-bike rating true · Weight ~1109 g

Maxxis Minion DHR II DD

Tire · Wheel size 27.5 · Width 2.5 · Compound Maxterra · Casing DoubleDown / Downhill / EXO / EXO+ · TPI 60 · Tubeless ready Yes · E-bike rating ~E50 · Weight ~1000 g

Brakes

SRAM Code Ultimate Stealth

Brake · Fluid type DOT · Lever adjustments Contact Point Adjust (tool-free) / Reach Adjust (tool-free) · Weight ~309 g

SRAM HS2

Rotor · Mount type 6-Bolt

Cockpit

$75

Title MTB FORM

Handlebar · Material Carbon

$75

ANVL Swage

Stem · Bar clamp diameter 35 mm · Steerer diameter 1 1/8" · Length 32 / 40 / 50 mm · Rise 5 deg · Material Aluminum (6061 CNC) · Weight 135 g

Rev Grips Race

Grips

FSA 55R

Headset

Seatpost & Saddle

Fox Transfer Factory

Seatpost · Actuation Wireless · Material dropper

SDG Bel Air 3 LUX

Saddle
